Smart Cushion Impact

The Smart Cushion Impact is an innovative impact attenuator that is designed to resist multiple impacts without the need of maintenance or replacement.

Its outstanding features guarantee an effective protection for people’s safety and preservation of key infrastructures.

Discover the distinguished features of the Smart Cushion Impact that make of this device the ideal choice in protection against impacts.

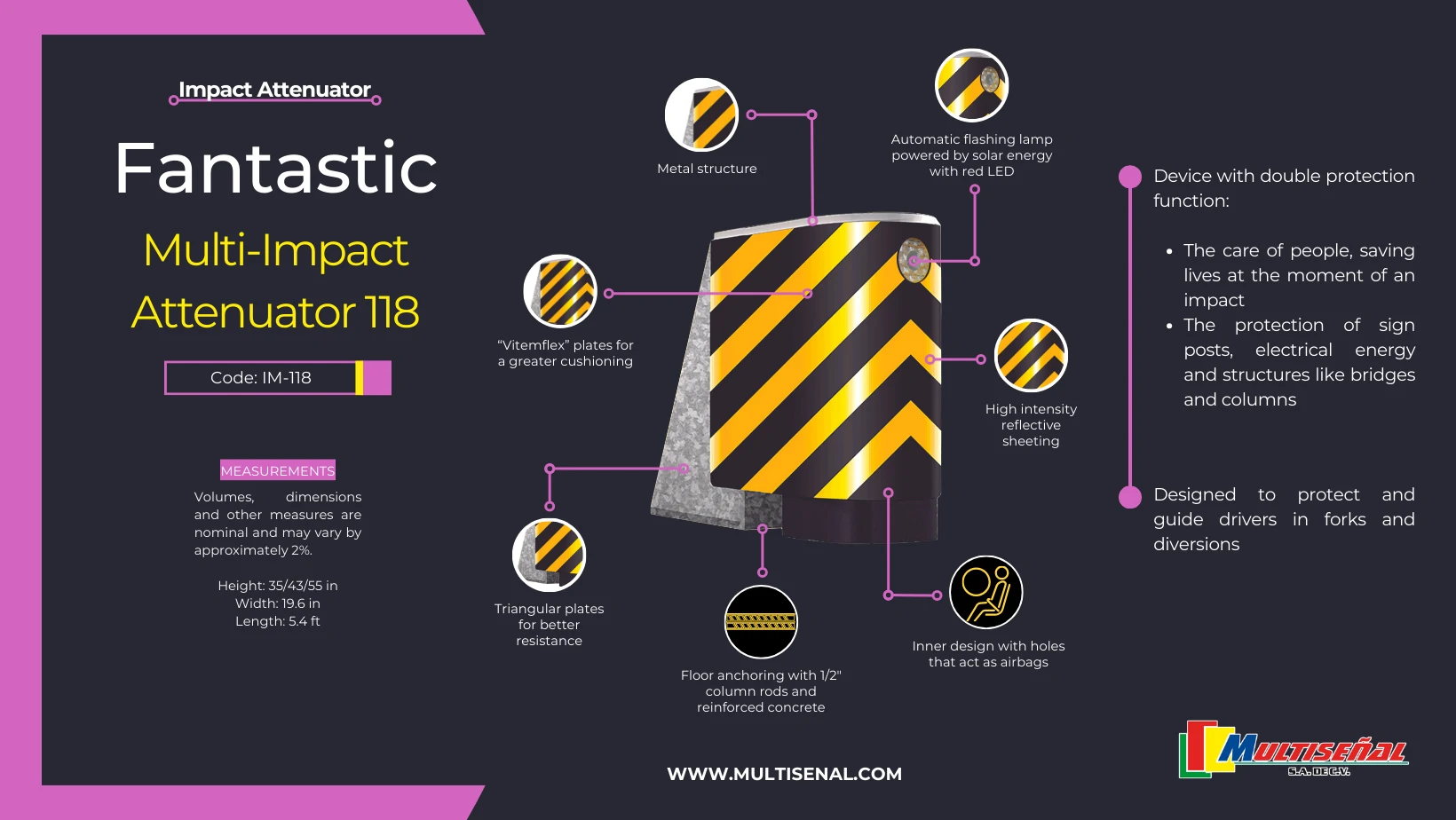

 Key Features:

  • Cushioning:
    • Integrated with “Vitemflex” plates, a foamed plastic material with closed cells.
    • Plates combined with different hardness, density and thickness for a maximum cushioning.
    • Inner design that creates holes acting as airbags, reducing significantly the vehicle’s damage during impact.
  • Robust Structure:
    • Hot dipped galvanized steel plates as support structure.
    • Floor anchoring through reinforced concrete square with 1/2″ rebars.
  • Complete Protection:
    • Safeguard lives as a top priority.
    • Preserve posts, signs, electrical energy and different structures.
  • Emergency Lighting:
    • Flashing light powered by solar energy.
    • 20 hours of solar charge provide up to 70 hours of continuous operation on flashing mode.
    • Automatic Functioning: Turns ON in dark conditions and turns OFF in light conditions.
  • Efficient Power System:
    • Solar charge time: 20 hours.
    • Great battery storage capacity that allows a continuous functioning of 70 hours.
  • Powerful Lighting:
    • 8 small convex mirrors to cover every LED.
    • Light source reinforcement through a 3.5 in reflector on the lens’s center.
    • Red color lenses for an effective and clear signaling.
Easy Installation:
  • Precise Excavation:
    • Approx. excavation dimensions: 35 x 33 x 23 in.
  • Effective Placement:
    • Positioning of the reinforced concrete square ensuring the 3 bolts at the front.
  • Safe fixation:
    • Bonded square with the rope out of it, facilitating the setting of the 1″ 9 nuts, flat washers and lock-washers.



  • Length: 5.3 ft
  • Height: 36.2 in., 3.7 ft. and 4.4 ft
  • Width: 19.6 in
  • Reflective: white or amber.


In conclusion, the Smart Cushion Impact redefines protection against impacts with its innovative design, advanced functions and easy installation.

A comprehensive solution that goes further than a simple protection, prioritizing security and environment preservation.

We invite you to explore our most outstanding road signs as the Impact Deflection Barriers.
