Crash Cushion Attenuator

Description

Crash Cushion Attenuator

The Crash Cushion Attenuator redefines traffic safety with its innovative impact absorption system.

This advanced device is composed by flexible modules, guaranteeing an effective protection in critical areas, such as entrance and exits of highways and high-speed tracks.

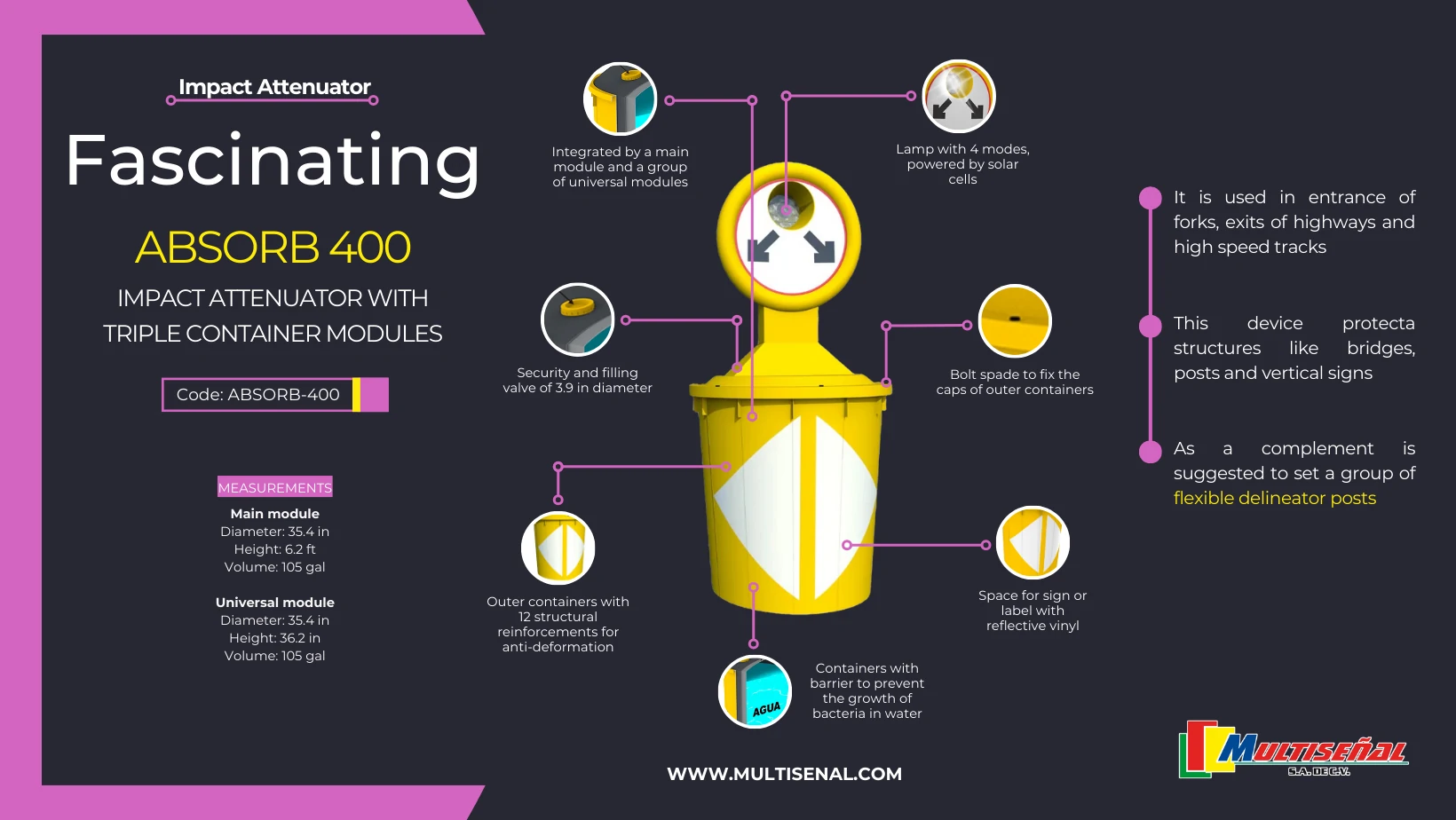

Key Features:

1. Triple Container Modules:
   • Each unity has an outer container of 105-gal.
   • Includes flexible inner containers, enabling an efficient absorption of impacts.
2. Efficient Water Management:
   • The containers are fill to an 80%, and an empty space of 20% for water movement during impacts.
   • The barrier created by containers avoid the growth of bacteria, allowing to conserve the water for years.
3. Air Tight Seal System:
   • The inner containers are air tight seal automatically, avoiding loss of water through evaporation.
   • The security valve and filling facilitate evaporation and condensation of the water, according to the climate conditions.
4. Anti-deformation Structural Reinforcements:
   • The outer containers have 12 structural reinforcements, increasing the resistance to impacts.
5. Visibility and Warning:
   • Lamp with 4 modes, powered by solar cells and visible at long distances.
   • It is recommended to integrate flexible delineator posts for an audible sign when crashed.
6. Versatility and Customization:
   • Area to sign or label with reflective vinyl.
   • Caps are fixed with security bolts to avoid detachment.
7. Scalability:
   • Integrated universal modules to reach the TL-3/ NC-3 según la Norma NOM-008-SCT2-2013.

Measurements:

Main Module:

• Height: 6.2 ft.
• Diameter: 35.4 in.
• Volume: 105-gal.

Universal Module:

• Height: 38.1 in.
• Diameter: 35.6 in.
• Volume: 105-gal.
• Color: Yellow reflective vinyl: White

This Crash Cushion Attenuator not only offers an effective solution for road safety but stands out for its durability, versatility and ability to adapt to different environments.

Don’t forget to explore more of our road products, such as the Guardrail Attenuator Bollard, with an excellent performance in highways.

Ensure the protection of your infrastructure and drivers with this advanced technology!
